MXBON 31324 ACRYLIC STRUCTURAL ADHESIVES

Name: MXBON 31324 ACRYLIC STRUCTURAL ADHESIVES
Brand: MXBON

Viscosity

Application

Packaging

Curing Time

Appearance

MXBON® 31324 is a transparent, light amber, urethane methacrylate ester acrylic structural adhesive liquid for bonding flat parts together. It is specially suitable for joining dissimilar materials, e.g. ferrite to plated materials in electric motors, loudspeakers, etc. It is specifically formulated for toughness and impact strength and cures with the aid of an activator.

Technology	Acrylic
Chemical Type	Urethane methacrylate ester
Appearance (uncured)	Transparent light amber liquid
Components	One component – requires no mixing
Viscosity	Medium
Cure	Anaerobic
Secondary Cure	Activator
Application	Bonding

Specific Gravity @ 25 °C	1.1
Flash Point -	See SDS
Viscosity, Brookfield - RVT, 25 °C, mPa·s (cP)
Spindle 6, 20 rpm	10,000 to 24,000
Shelf life	24 months unopened when stored at 8 to 12℃

Physical Properties

Elongation, at break. ISO 527-3, %	165
Tensile Strength, ISO 527-2, N/mm²	35
Tensile Modulus, ISO 527-2, N/mm²	600
Coefficient of Thermal Expansion, ISO 11359-2, mm/mm/K	7.5×10-5
Coefficient of Thermal Conductivity, ISO 8302, W/mK	0.1
Specific Hea, kJ/(kg·K)	0.3

Electrical Properties

Dielectric Constant / Dissipation Factor, IEC 60250, @ 100 Hz	5.5/0.03
Dielectric Constant / Dissipation Factor, IEC 60250, @ 1 kHz	5.4/0.03
Dielectric Constant / Dissipation Factor, IEC 60250, @ 1 MHz	4.5/0.04
Dielectric Breakdown Strength, IEC 60243-1, kV/mm	70
Volume Resistivity, IEC 60093, Ω·cm	8×1013
Surface Resistivity, IEC 60093, Ω	2×1017

Adhesive Properties

Cured for 24 hrs @ 25 ℃, Activator 037387 on 1 side Lap Shear Strength, ISO 4587/ASTM D1002/JIS K6850 GBMS (Grit Blasted Mild Steel)

Bond Gap	N/mm2	psi
0 mm gap	15.0 to 21.0	2175.6 to 3045.8
0.5 mm gap	≧11.0	≧1595.4

Cured for 24 hrs @ 25 ℃, Activator 037387 on 2 side Lap Shear Strength, ISO 4587/ASTM D1002/JIS K6850 GBMS (Grit Blasted Mild Steel)

Bond Gap	N/mm2	psi
0.5 mm gap	≧14.0	≧2030.5

Cured for 72 hrs @ 25 ℃, Activator 037387 on 1 side Lap Shear Strength, ISO 4587/ASTM D1002/JIS K6850 GBMS (Grit Blasted Mild Steel)

Heat Strength

Tested at temperature

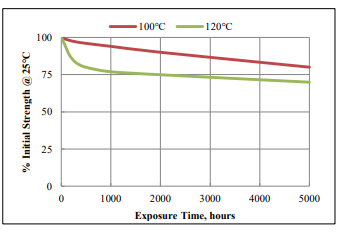

Heat Aging

Aged at temperature indicated and tested @ 25 ℃

Chemical/Solvent Resistance

Aged under conditions indicated and tested @ 25 ℃

Environment ℃ 720h

Motor oil 87 100

Water/glycol 50/50 150 20

Humidity, 98% RH 50 50

Acetone 25 90
This product is not recommended for use in pure oxygen and/or oxygen rich systems and should not be use with chlorine or other strong oxidizing materials. Where washing systems are used to clean the surfaces before bonding, it is important to check the compatibility of the washing solution with the adhesive. In some cases, these solutions can affect the cure and performance of the adhesive. This product is not recommended for use on certain plastics. Users are recommended to confirm compatibility of the product with such substrates.

Storage & Handling precaution

Keep adhesive in a cool and dry place. The storage temperature is recommended at 8 °C to 12 °C. For details, consult the Safety Data Sheet, (SDS). Shelf life is two years from the date of manufacture in the original container under the optimal conditions.

1. Avoid contact with skin and eyes.

2. If contact with skin, rinse with water.

3. If adhesive gets into eye, keep eye open and rinse with water thoroughly. Seek medical attention immediately.

4. Keep the material out of children’s reach.
